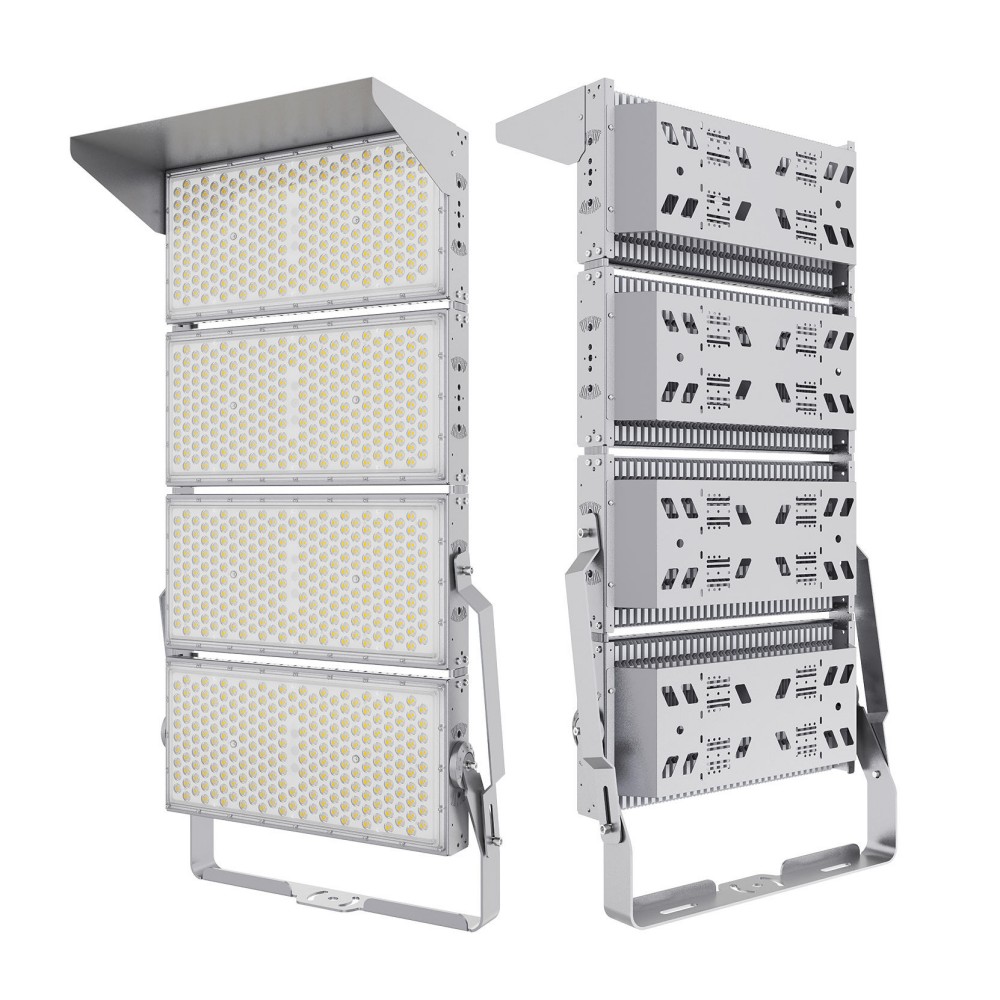

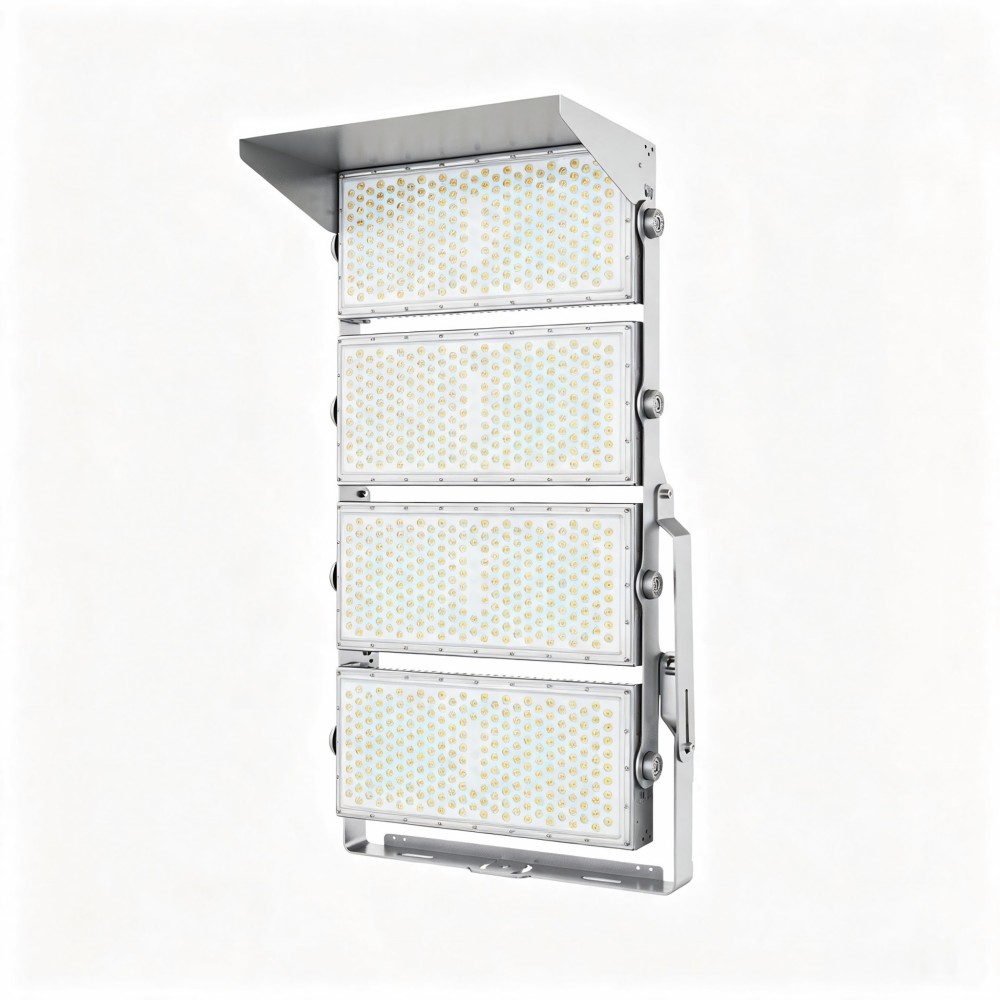

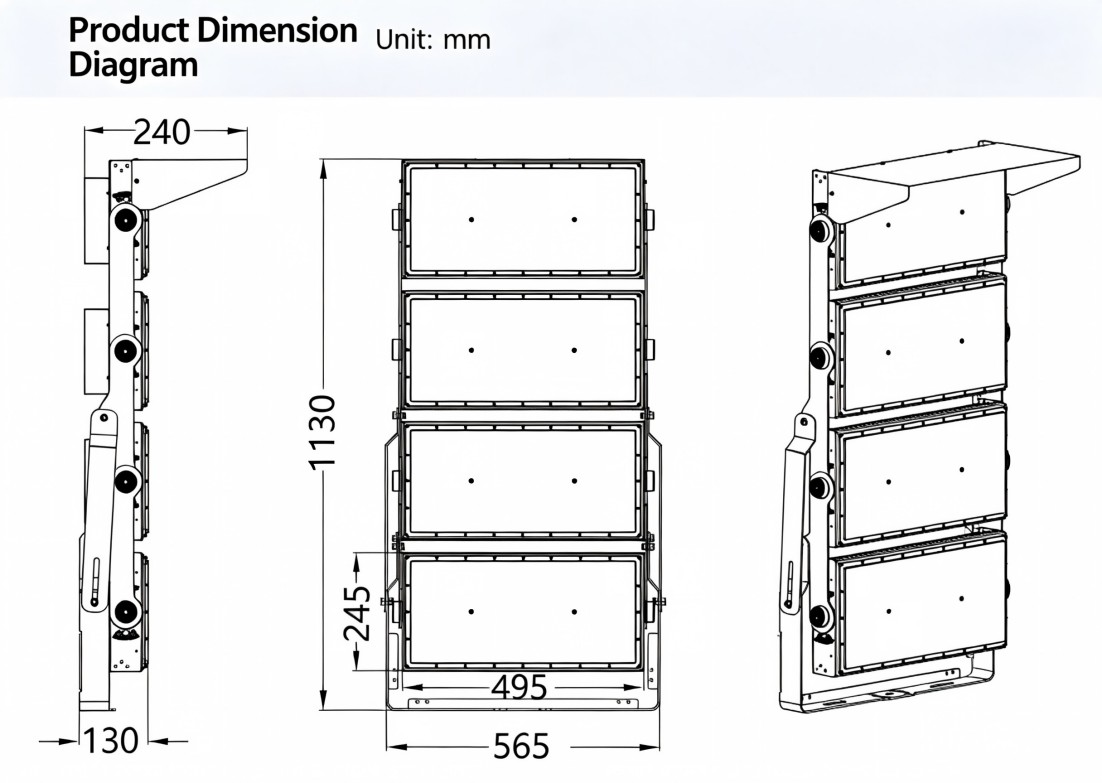

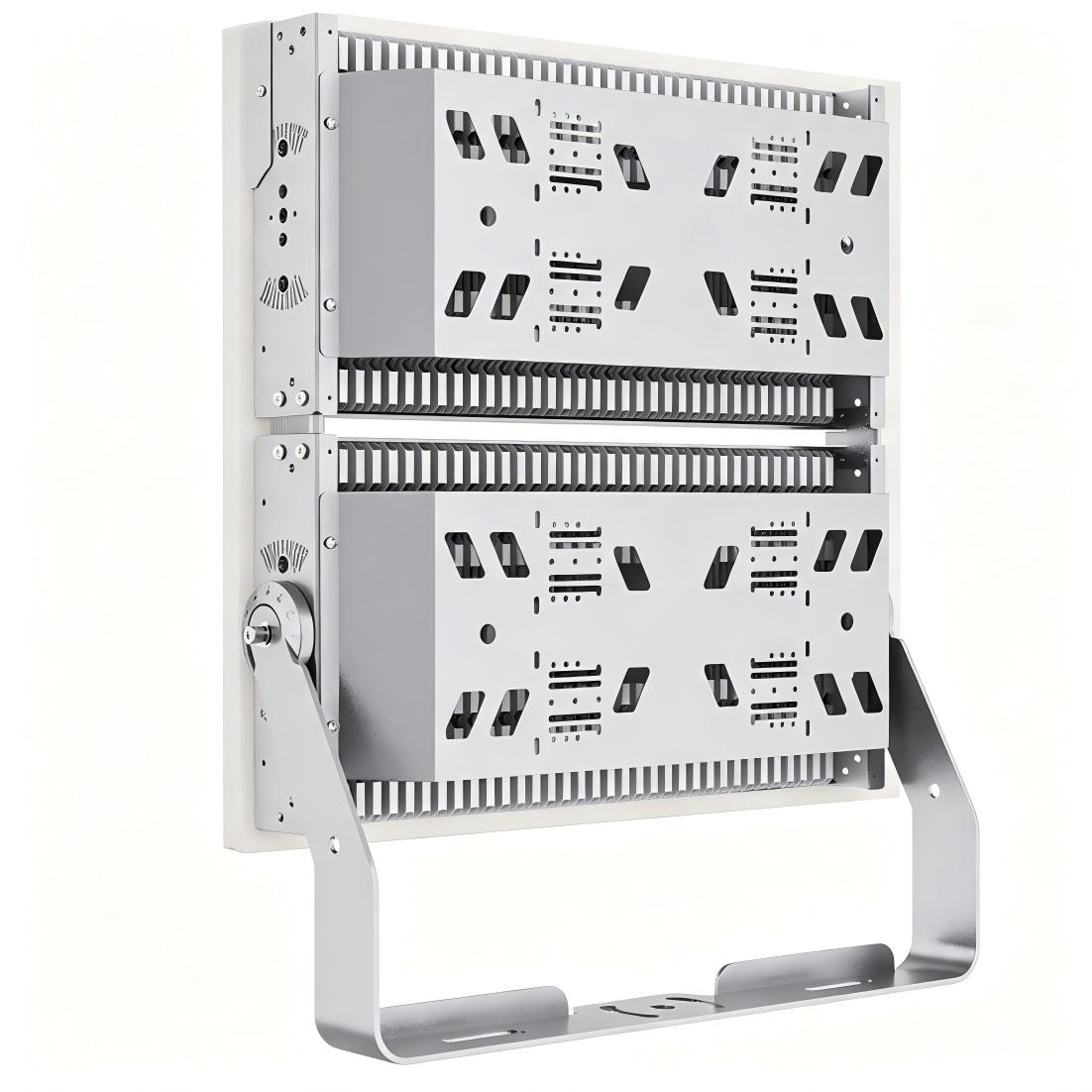

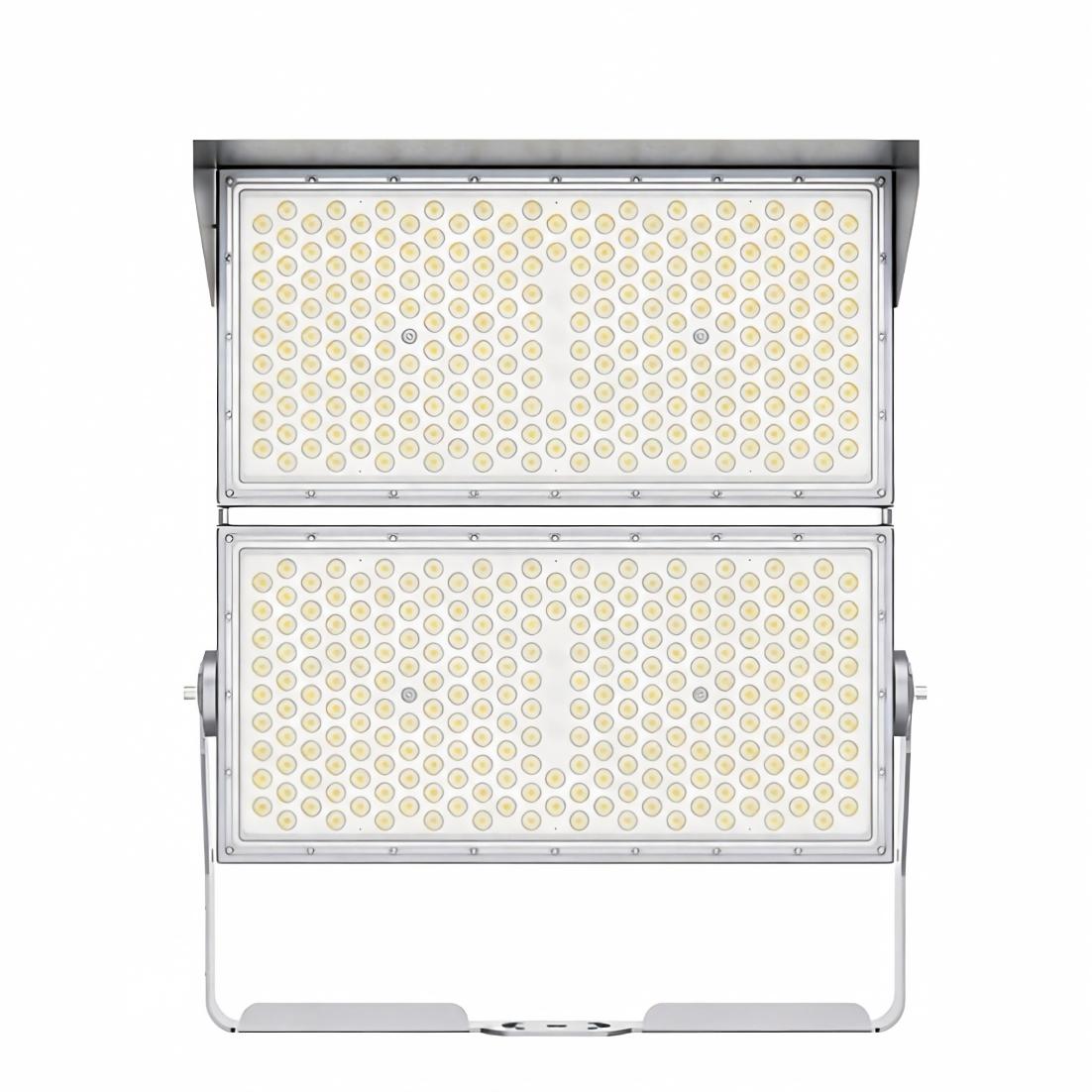

Free Splicing Modular Design, Flexible Power Combination

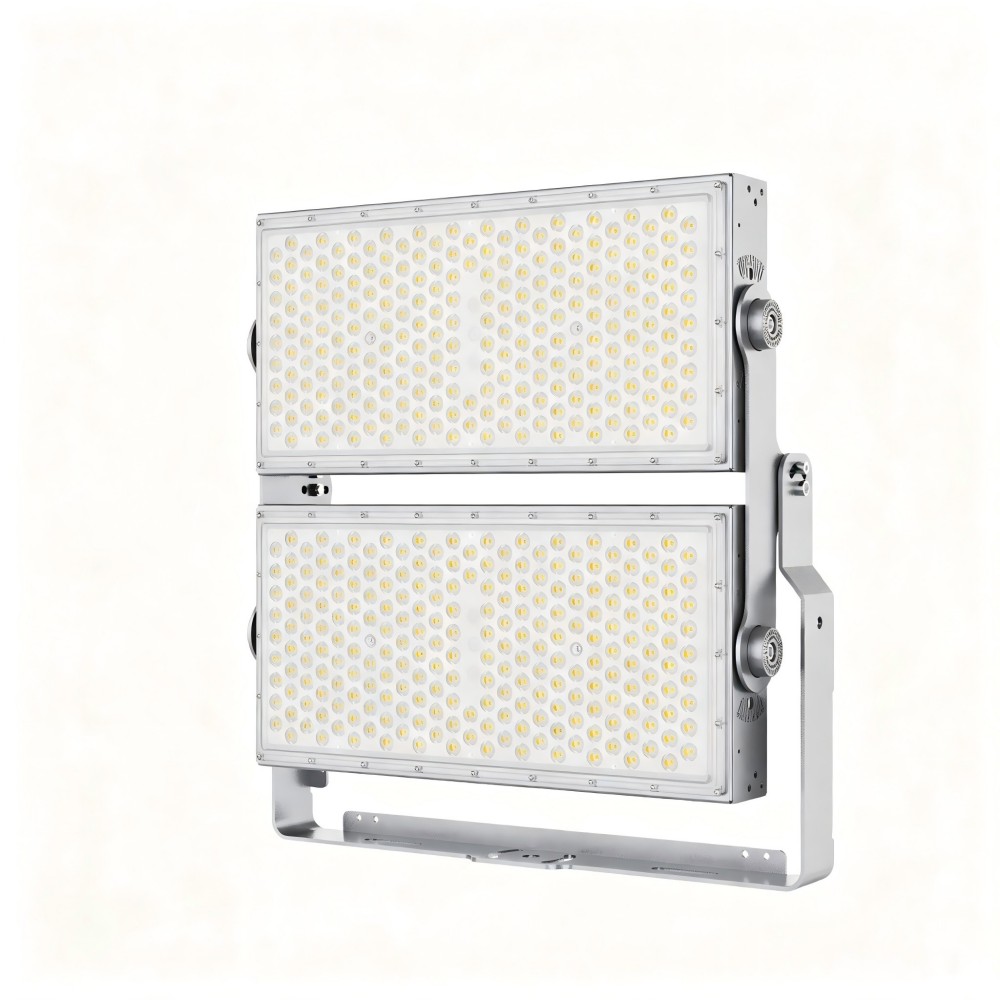

Single standard module 500W, support 2/3/4 modules assembly to reach 1000W/1500W/2000W. Clients match total wattage based on venue size, no need to stock multiple single-power lamp models.

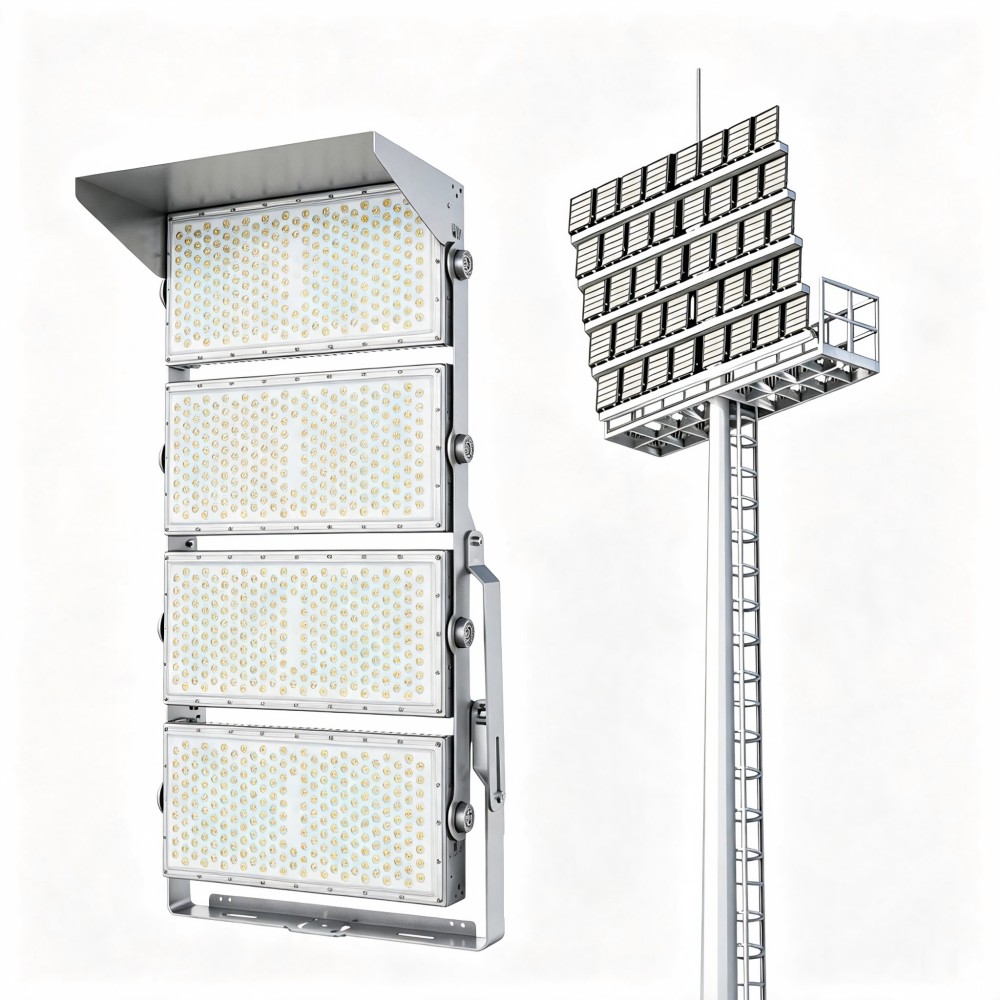

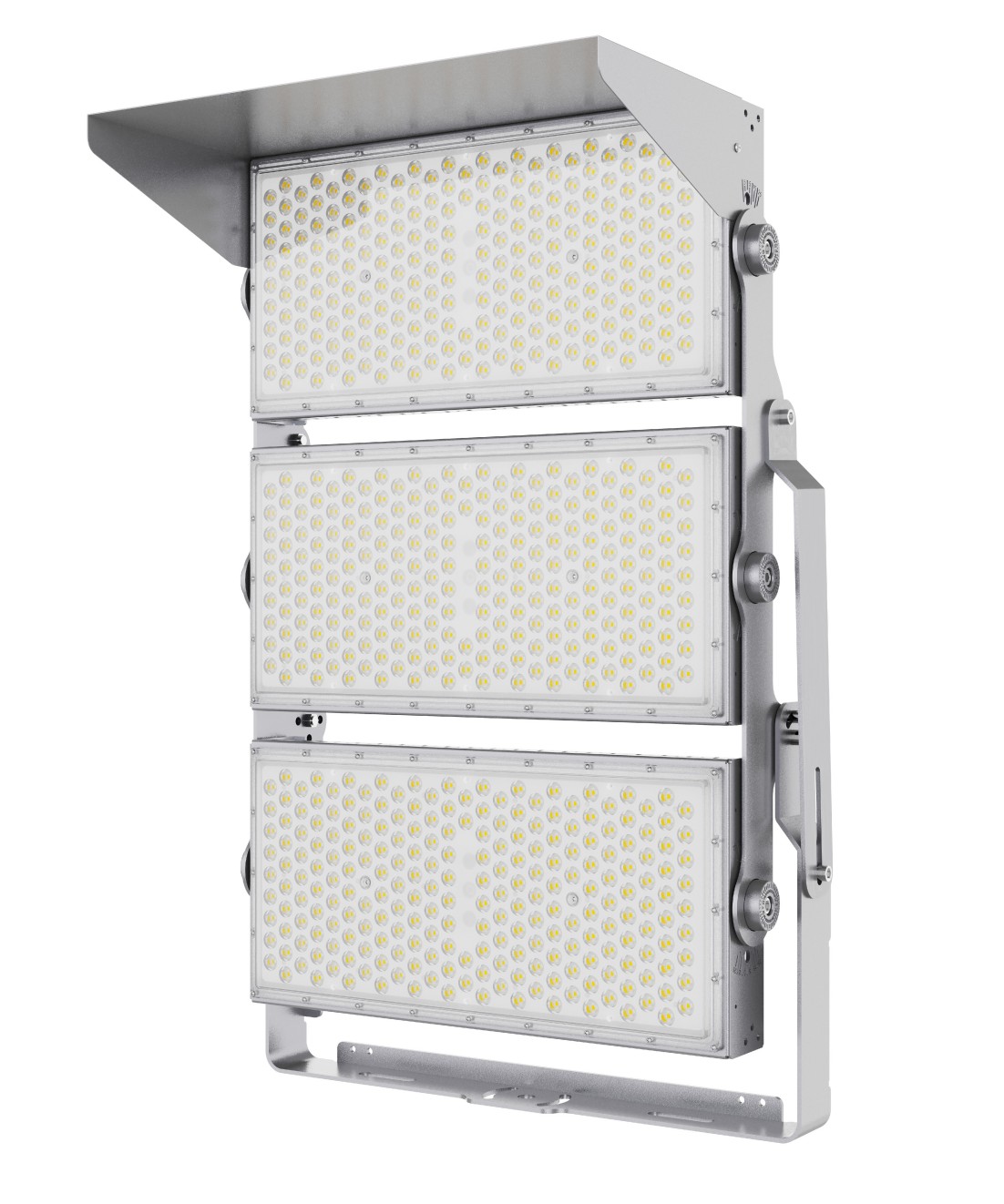

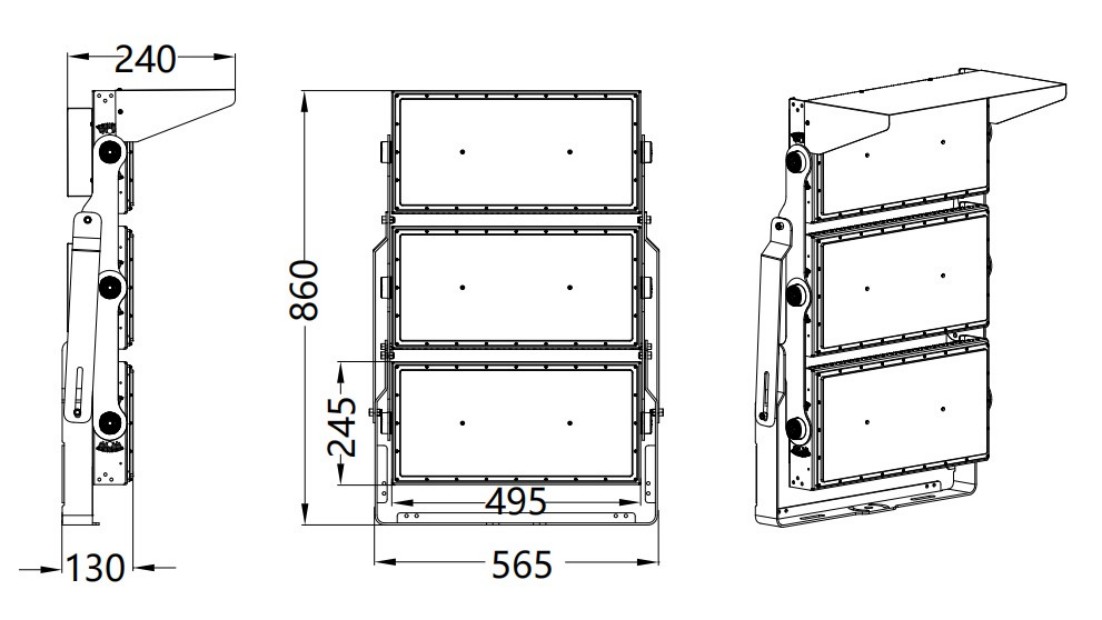

Independent Angle Adjustment For Each Module
Every 500W light panel owns separate rotation structure, adjust irradiation direction individually. Solve uneven illuminance, dark corners and over-bright areas on large sports venues.

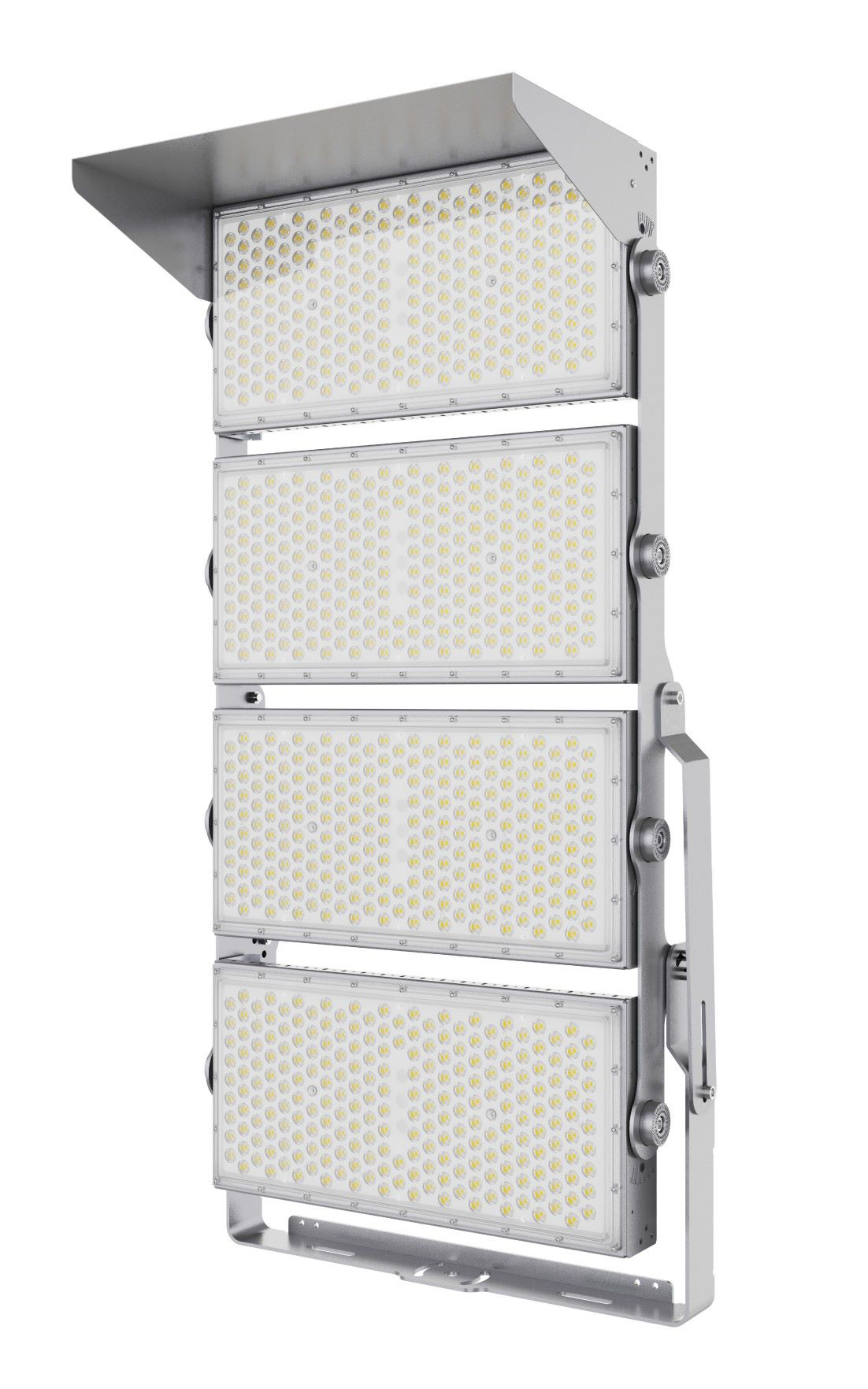

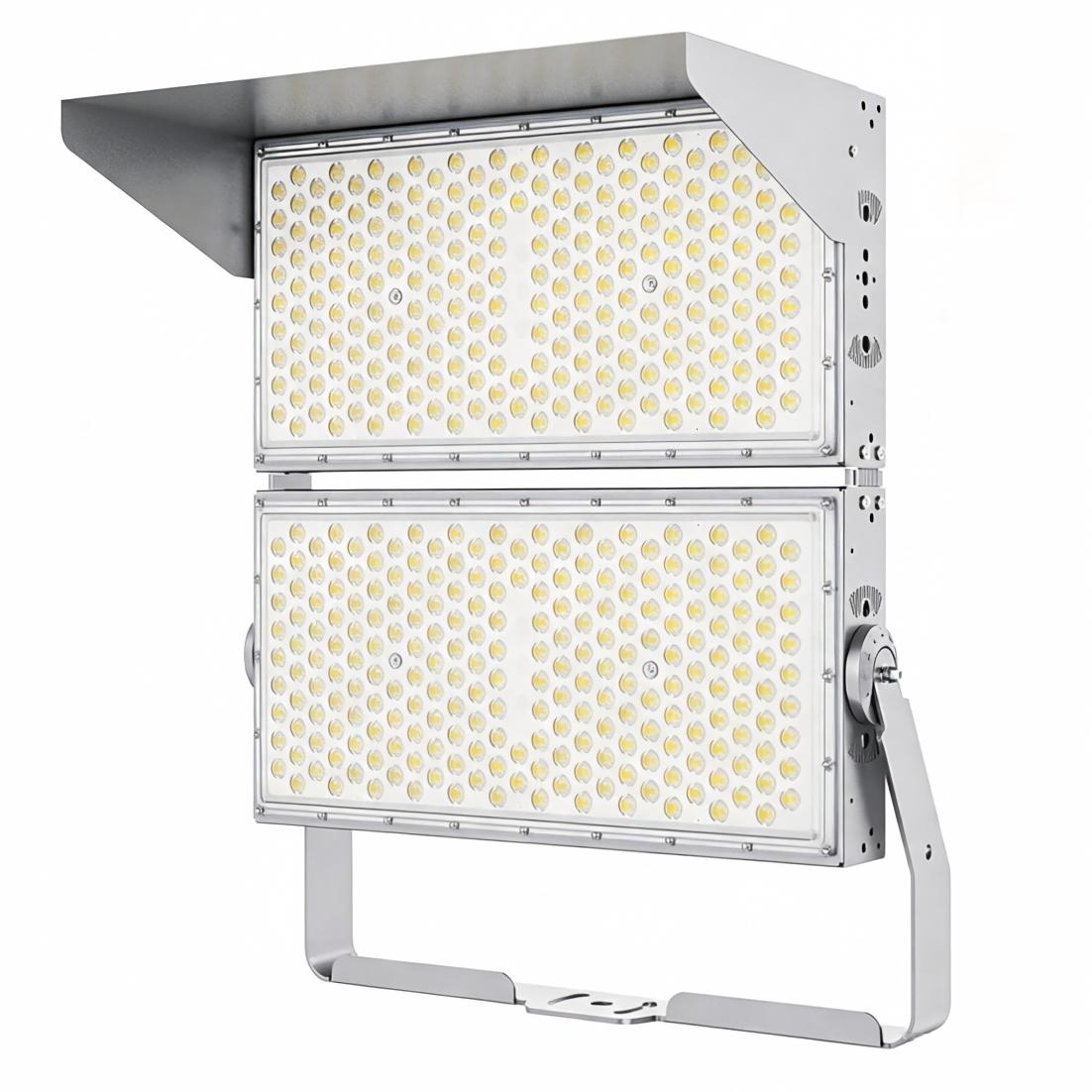

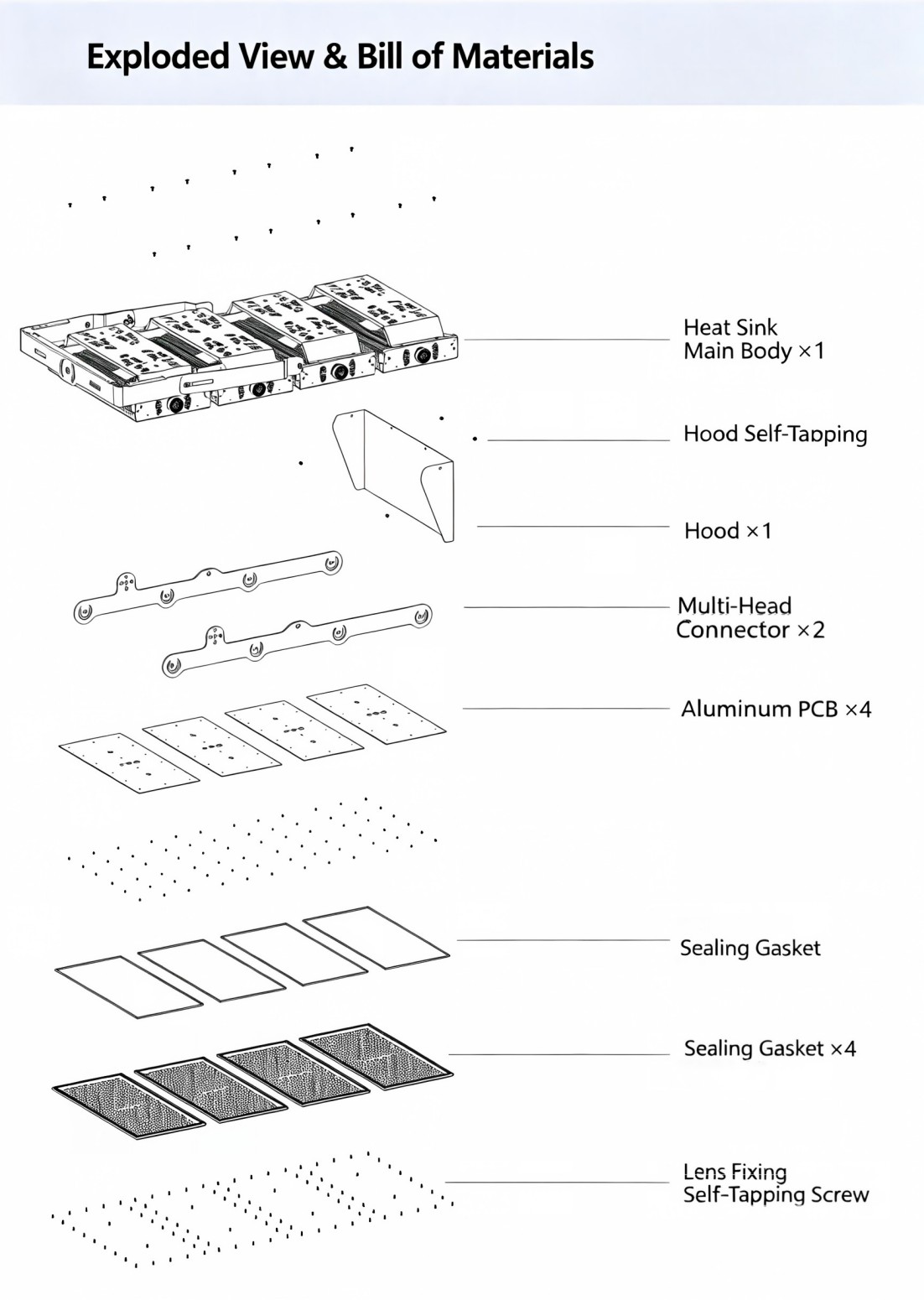

Optional Detachable Sun Visor, Anti-Glare & Anti-Light Pollution
Custom metal visor available to block upward stray light, reduce glare to athletes and audiences, avoid light spillage disturbing surrounding residential areas.
High-Strength Steel, Safe & Durable
Made of high-strength low-alloy steel (Q235B/Q355B/ASTM A572 Gr.50/S355JR), yield strength ≥345MPa, wind resistance up to 60m/s, seismic grade 8.

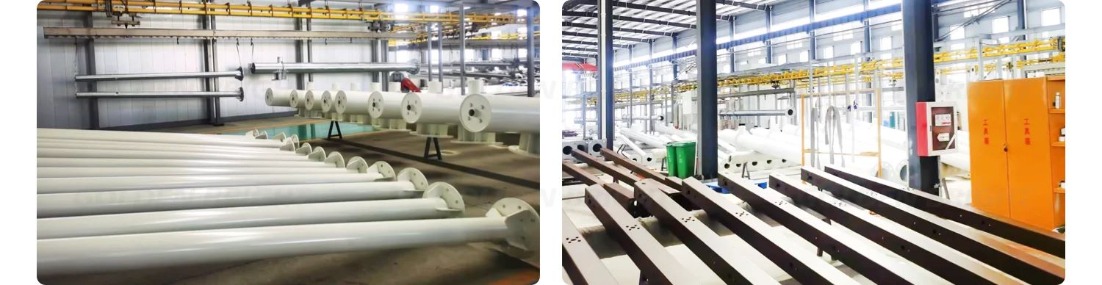

Hot-Dip Galvanized for Long Life
Internal & external hot-dip galvanizing (zinc layer 85–120μm), compliant with GB/T 13912, ASTM A123, EN ISO 1461. 30-year rust-proof protection, adaptable to coastal, acid rain, and high-humidity environments.

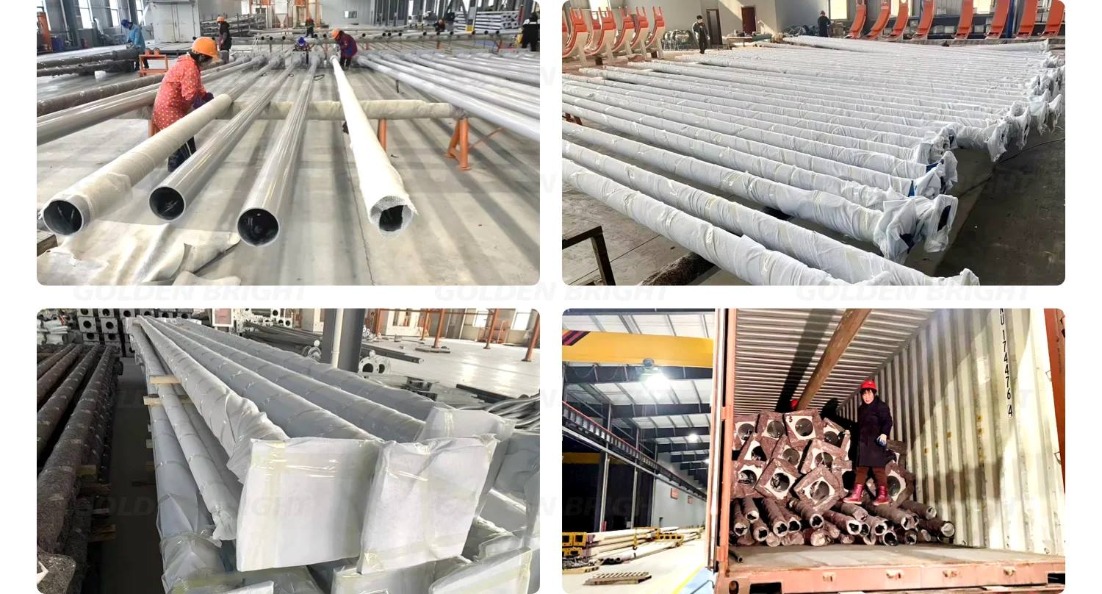

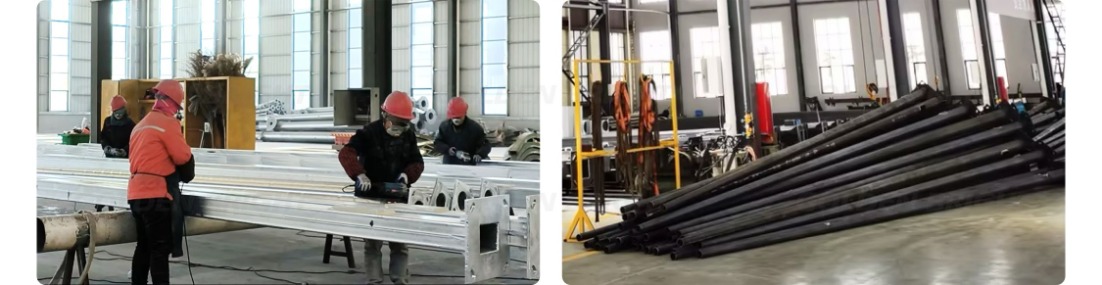

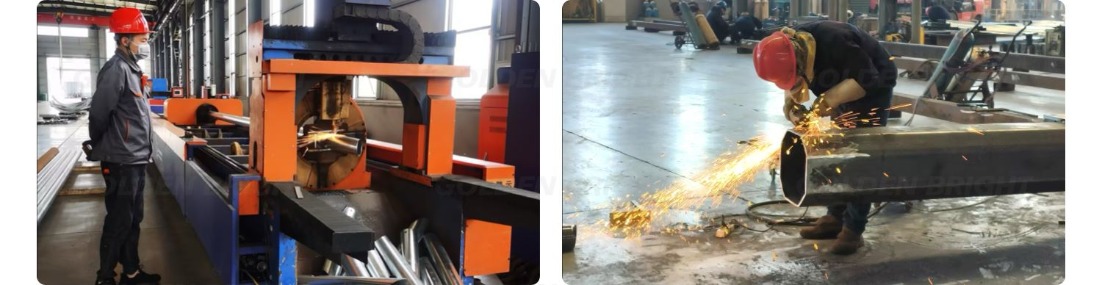

Precision Welding, Reliable Quality
Fully automatic submerged arc/CO₂ welding, smooth welds with no defects. 100% ultrasonic testing, compliant with AWS D1.1, EN 15614 standards, 100% structural strength qualified.
Smart Lifting System (Optional)
Built-in electric/manual dual-control lifting device, speed 3–5m/min, with electromagnetic brake, anti-fall protection, manual operation during power failure. No high-altitude maintenance required.

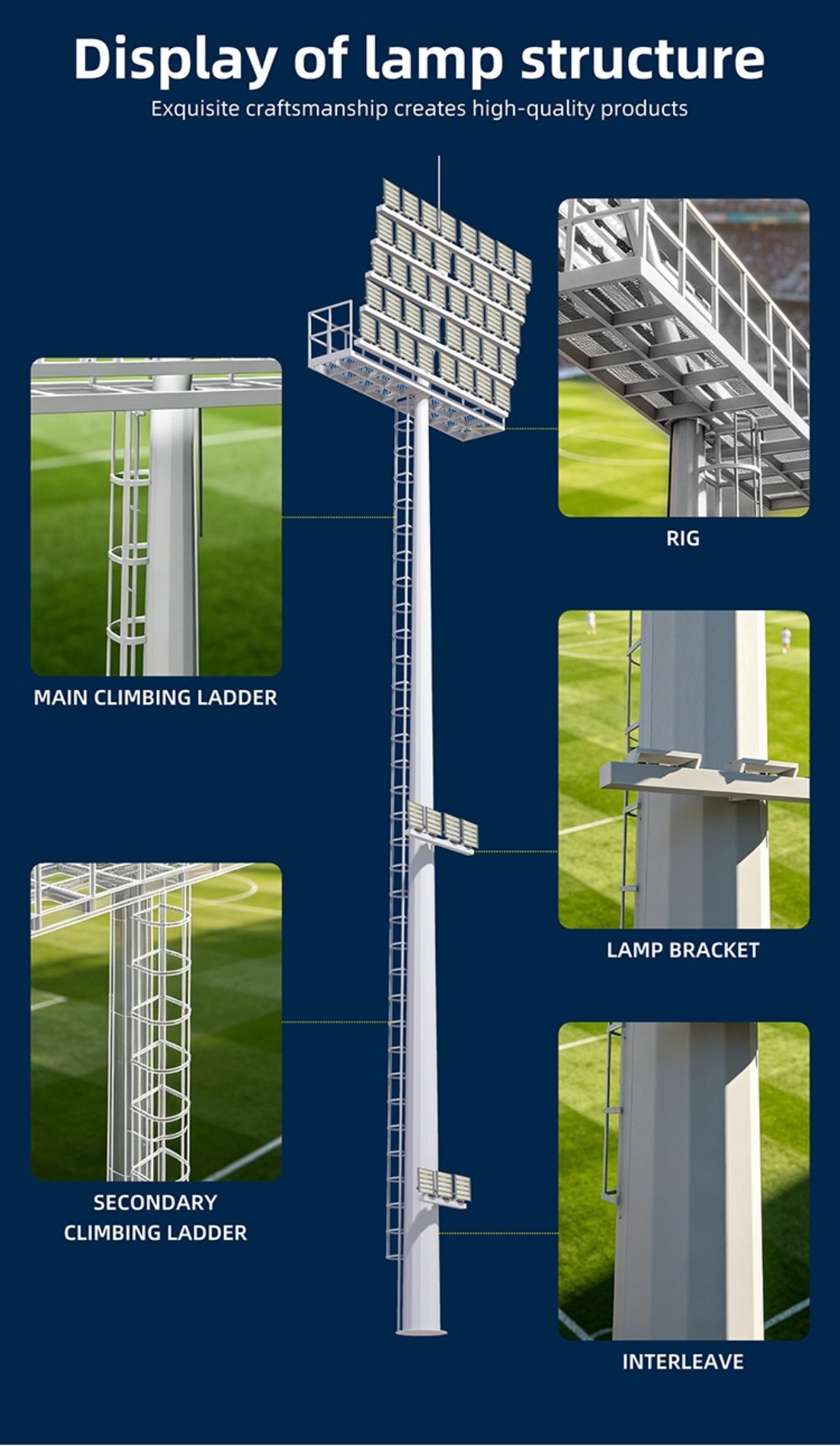

Custom Design for All Scenarios
Height 15–40m optional, wall thickness 3–16mm, flange/direct burial installation. Equipped with lightning rod, intelligent control, multi-cantilever lamp panel to meet various engineering needs.
