All-in-One vs Split Solar Street Lights: How to Choose for Your Road Project

1. Introduction

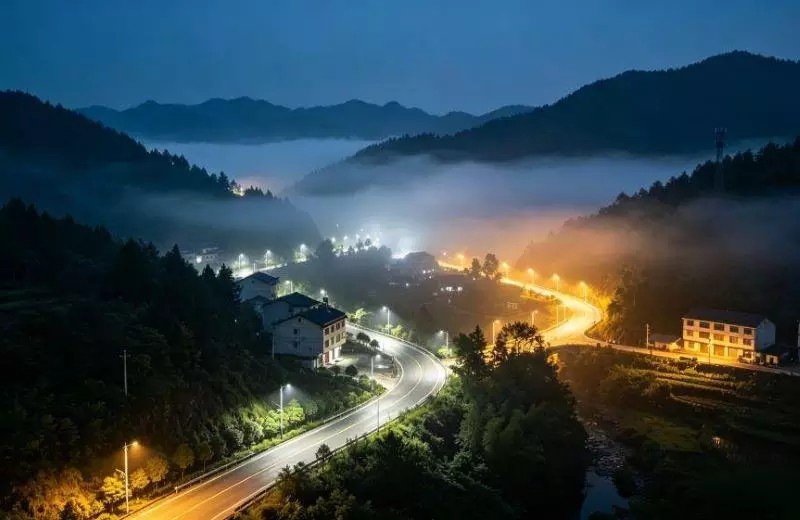

Solar street lighting has become the preferred lighting solution for rural roads, suburban highways, residential lanes and scenic roads worldwide. Two mainstream types dominate the market: all-in-one solar street lights and split solar street lights. Many road contractors and project owners have encountered costly project rework caused by improper selection: using all-in-one lights on high-temperature main roads leads to premature battery degradation, or selecting low-power integrated lamps for wide carriageways that fail to meet required lux standards. This article breaks down their structural differences, quantified pros & cons and applicable scenarios to help you make a fast, correct decision for your road tender or construction project.

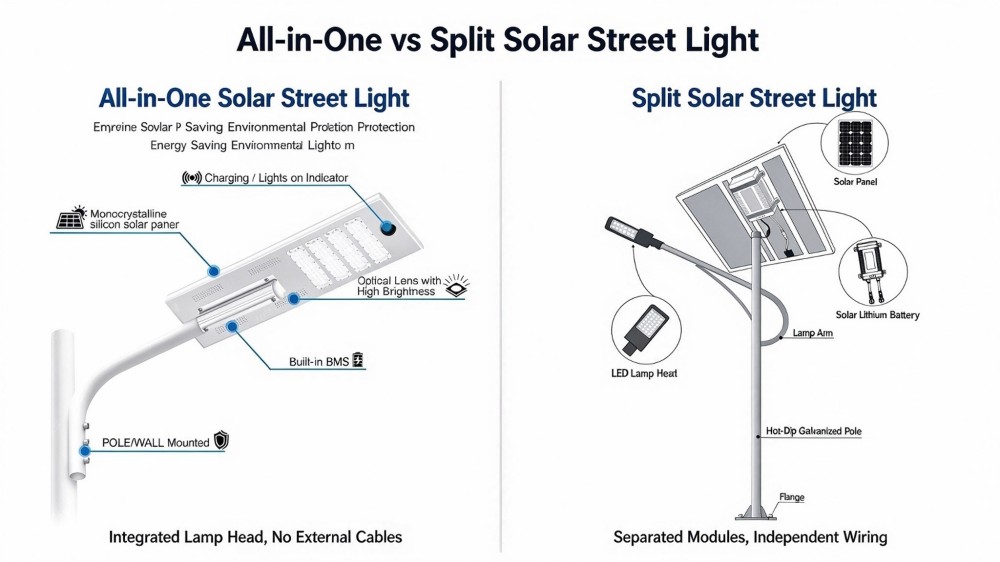

2. Core Structural Difference Between Two Solar Street Lights

2.1 All-in-One Solar Street Lights

The all-in-one solar street light combines the solar panel, lithium battery, LED light source, intelligent controller and PIR motion detector within a single sealed housing. No separated cables. The whole unit is mounted directly on the lamp pole. Typical power range: 10W ~ 80W.

2.2 Split Solar Street Lights

Split solar street lighting systems feature modular, separate components for flexible layout. The solar panel is mounted on top of the pole, the LED lamp is fixed on the lamp arm, and the battery is usually buried underground or installed inside the pole. Wires connect these separate parts. Typical power range: 80W ~ 200W, supporting higher lumen output for wide roads.

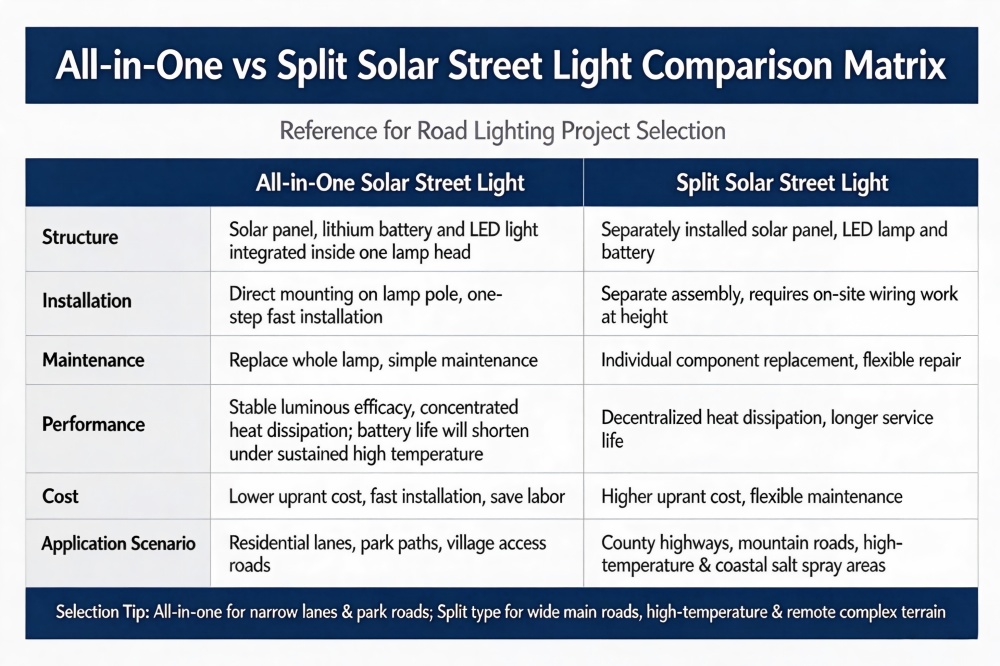

3. Parameter Comparison Table

Check this table for quick comparison of key engineering parameters.

The table above covers the most concerning indicators for contractors. You can filter the lamp type according to your road width, local weather and construction budget.

4. Pros & Cons Comparison

4.1 All-in-One Solar Lights: Advantages & Limitations

✅ Advantages

- Super simple installation: one worker can finish mounting in minutes, no wiring work. Great for fast deployment.

- Low maintenance: compact integrated unit, fewer exposed cables to be stolen or damaged.

- Clean appearance, suitable for scenic roads and town beautification projects.

❌ Limitations

- Battery and panel share the same housing; high ambient temperature will raise battery temperature, reduce lithium battery depth of discharge (DOD) and shorten battery life.

- Limited power capacity, not fit for wide main roads that need high lumen output.

4.2 Split Solar Lights: Advantages & Limitations

✅ Advantages

- Independent layout: solar panel angle can be freely adjusted for maximum sunlight capture.

- Larger battery capacity, support high-power LED lamps. Perfect for main highway, heavy traffic roads.

- With batteries buried underground, it maintains a cooler operating temperature to extend cycle life and guarantee stable performance during prolonged rainy periods.

❌ Limitations

- Extra wiring work, longer installation time and higher labor cost.

- Exposed cables have risk of theft or damage in remote areas; armored wire or cable conduit is required for protection.

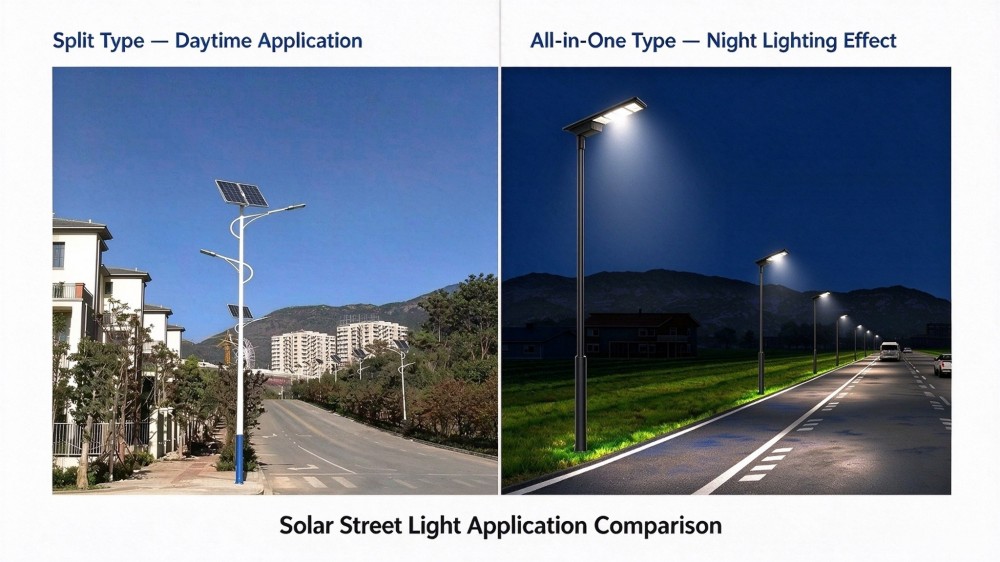

5. Which Type Fits Your Road Project? Application Scenarios

5.1 Choose All-in-One Solar Street Light If:

- Project is narrow lanes, village access roads, park paths, residential community roads.

- Short construction schedule, limited installation manpower.

- Area has low risk of cable theft, moderate climate without extreme heat.

- Your project prioritizes neat appearance and low post-maintenance workload.

See our Sirius series all-in-one solar street light for narrow road projects.

5.2 Choose Split Solar Street Light If:

- Wide main roads, county highways, industrial park roads requiring high brightness.

- Regions with strong sunshine and high ambient temperature.

- You need longer battery backup time for rainy days.

- Long term project, the client expects 8-10 years service life.

- Coastal projects with salt spray corrosion risk.

Explore our JD split solar street light built for highway and high-power road projects.

6. Quick Selection Checklist for Contractors

1. Road width & required lux level: Wide main road → Split; narrow village road → All-in-one

2. Local climate: Hot tropical / coastal salt spray area → Split (buried battery); mild climate → All-in-one

3. Construction condition: Short time & few workers → All-in-one

4. Anti-theft demand: High theft risk → All-in-one (no exposed wire)

5. Budget: Tight budget for installation labor → All-in-one

7. FAQ

Q1: Which one has longer service life?

A1：Normally split solar street lights can achieve longer lifespan, because the battery is separated and kept in low temperature environment. Quality all-in-one lights can reach 5~7 years, while premium split systems can hit 8~10 years.

Q2: Can all-in-one solar lights work in rainy seasons?

A2：Yes. Reliable all-in-one models have IP65 rating and support 3~5 days backup. But for places with continuous heavy rainy weather, split type with bigger battery is more recommended.

Q3: What is the warranty difference between the two types?

A3：Standard all-in-one solar street lights usually come with 3-year warranty. High-end split solar systems commonly offer 5-year warranty for lithium battery and LED module, with separate spare parts available for replacement.

Q4: How to solve cable theft risk for split solar lights?

A4：Use armored cables or run wires inside galvanized conduit, bury cables deep underground. We also provide anti-theft lock for lamp door to protect internal wiring and battery.

Q5: Which option is better for coastal salt spray projects?

A5：Split solar street lights are more suitable. We can adopt hot-dip galvanized pole and anti-corrosion coated LED fixtures. Battery is buried underground to avoid salt mist erosion.

8. Conclusion & Get Solution

There is no absolute "better" option between all-in-one and split solar street lights. The best choice depends on your road width, local climate, construction schedule and project budget. Send us your project parameters including road length, required lux, latitude and rainy days, and we will provide customized solar street lighting layout proposal. We can also deliver Dialux EVO illumination simulation report to verify lighting performance for your tender document.
